Custom Made Oilfield Hoses
When it comes to oilfield hoses.....we do it all...
Choke & Kill Hose
Mud Pump Hose
Slim Hole Hose
Call for quote on any item.....800-691-0702
| Our expanded plant facilities employs 35 people with
a current footage of 25,000 square feet and a projected
enlargement with an additional 35,000 sq ft., making
this plant a grand total of 60,000 square feet.
We deliver these specialized
In house fabrication
Delivery time approximately 1-3 days

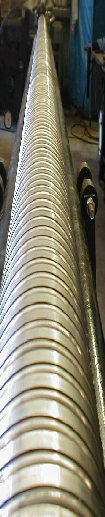

Rotary Drilling and Vibrator Hose
Black Gold® (Swaged Ends)
Rotary Drilling/Vibrator Hose
5,000 psi W.P.- 10,000 psi Test Grade D
- Meets API Spec 7K standard
- 2 1/2", 3", 3 1/2" ID Gates Black Gold® Grade D
- Rotary Drilling and Vibrator Hose,
lengths up to 90ft
- Standard API male thread end couplings. Special add-on fittings (will be
furnished welded) hammer unions, hub or flanges are optional.API 7K
- Lloyd's of London Fire Test (Additional Cost)
- DNV (Additional Cost)
- ABS (Additional Cost)
- DIN German (Additional Cost)
- Health & Safety Executive (Additional Cost)
- NACE (Additional Cost)
- ISO 6807
- Letter of Conformance (Additional Cost)
- Coupling/Mat'l Traceability (Additional Cost)
- Test Certificates
Lloyd's of London Fire Test (Additional Cost)
DNV (Additional Cost)
ABS (Additional Cost)
DIN German (Additional Cost)
Health & Safety Executive (Additional Cost)
NACE (Additional Cost)
Letter of Conformance (Additional Cost)
Coupling/Mat'l Traceability (Additional Cost)
For: Flexible connection between standpipe and swivel (Rotary Drilling)
or between pump and
standpipe (Rotary Vibrator) for pumping mud at extra high pressure in oil drilling
and exploration work.
Temperature Range: -20ºC to +82ºC
(-4ºF to +180ºF).
Tube: 3/16" thick. Black. Specially
compounded for handling abrasive, corrosive and oily drilling mud.
Reinforcement: Multiple layers of polyester
cord over tube. Multiple layers of "close wound" high tensile steel
cables, with one layer of adhesion fabric placed between cable layers. Multiple
layers of reinforcement over cables through body of hose.
Cover: Type C4 (Modified Nitrile). Black.
Specially compounded UltraBrasion cover is resistant to abrasion,
corrosion, cutting, gouging, oil and weather. One continuous longitudinal
yellow transfer label.
Couplings: Shipped with no couplings.
Plain end hose only. Only authorized oilfield hose "Roughneck" Distributors
have authorization to provide swaged assemblies. NOTE: Field welding of fittings
is not recommended.
Available Sizes: 3", 3-1/2"
Lengths: 90 ft. maximum reels
